Real World Examples#

A real-world HPO example: searching an OpenCLIP model's optimization hyperparameters (learning rate, weight decay) together with its vision/text tower width and depth, pre-training contrastively on real LAION image/caption pairs. Sampling and training are decoupled so each sampled config -- which can need a very different amount of GPU memory -- is routed to a right-sized Slurm job instead of blocking one worker on training.

See vlm_openclip/README.md for the full workflow and setup.

Image Segmentation Pipeline Hyperparameter Optimization#

This example demonstrates how to perform hyperparameter optimization (HPO) for an image segmentation pipeline using NePS. The pipeline consists of a ResNet-50 model to segment images model trained on PASCAL Visual Object Classes (VOC) Dataset (host.robots.ox.ac.uk/pascal/VOC/).

We compare the performance of the optimized hyperparameters with the default hyperparameters. using the validation loss achieved on the dataset after training the model with the respective hyperparameters.

python image_segmentation_hpo.py

The search space has been set with the priors set to the hyperparameters found in this base example: lightning.ai/lightning-ai/studios/image-segmentation-with-pytorch-lightning

We run the HPO process for 188 trials and obtain new set of hyperpamereters that outperform the default hyperparameters.

Hyperparameter Prior Optimized Value
learning_rate 0.02 0.006745150778442621
batch_size 4 5
momentum 0.5 0.5844767093658447
weight_decay 0.0001 0.00012664785026572645

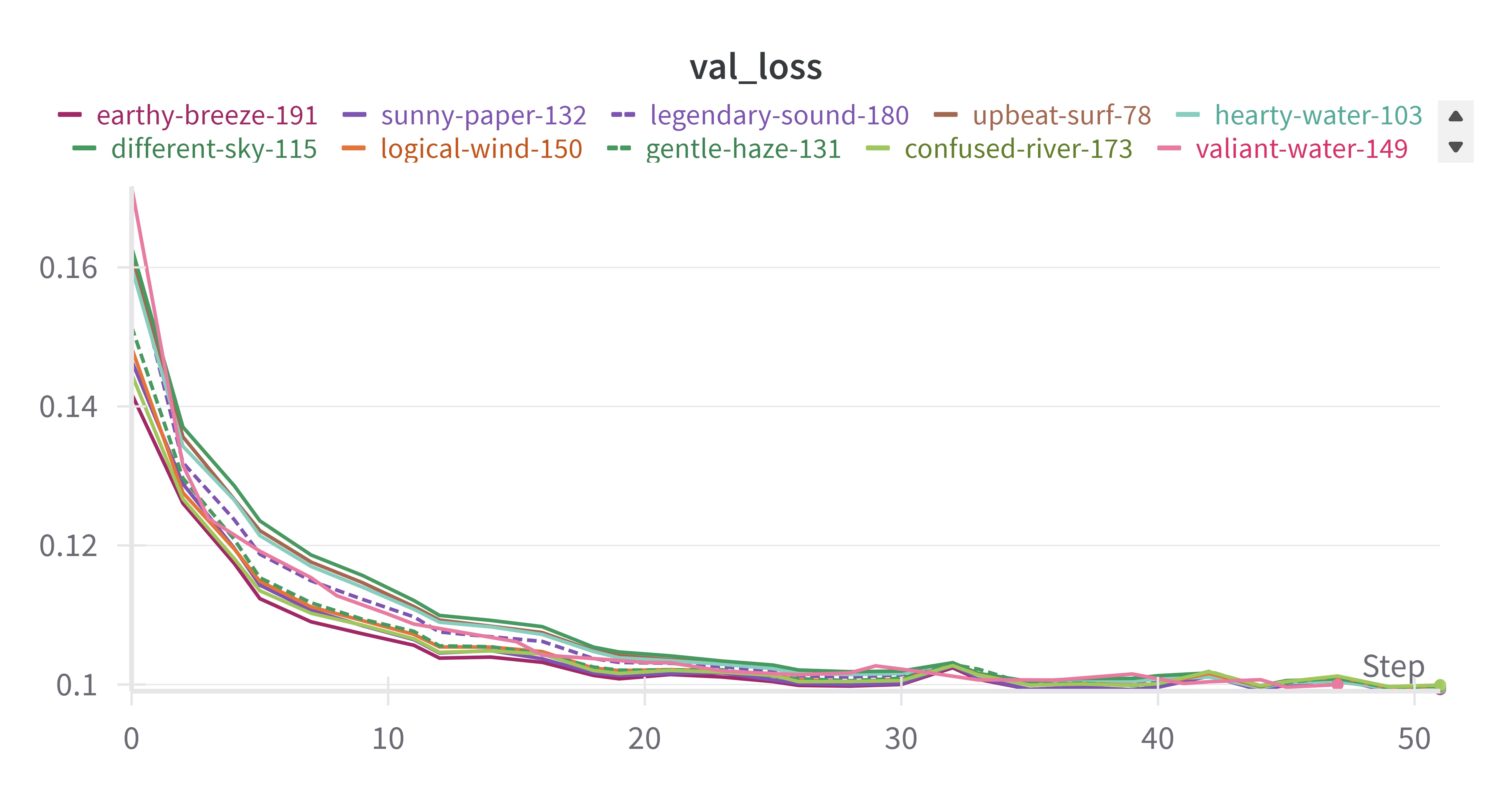

Validation Loss Curves

The validation loss achieved on the dataset after training the model with the newly sampled hyperparameters is shown in the figure above.

We compare the validation loss values when the model is trained with the default hyperparameters and the optimized hyperparameters:

Validation Loss with Default Hyperparameters: 0.114094577729702

Validation Loss with Optimized Hyperparameters: 0.0997161939740181

The optimized hyperparameters outperform the default hyperparameters by 12.61%.
