Configuring and Running Optimizations#

The neps.run() function is the core interface for running Hyperparameter and/or architecture search using optimizers in NePS. You can find most of the features NePS provides through the API of this function.

This document breaks down the core arguments that allow users to control the optimization process in NePS.

Required Arguments#

To operate, NePS requires at minimum the following two arguments neps.run(evaluate_pipeline=..., pipeline_space=...):

import neps

def run(learning_rate: float, epochs: int) -> float:
    # Your code here

    return loss

neps.run(
    evaluate_pipeline=run, # (1)!
    pipeline_space={, # (2)!
        "learning_rate": neps.Float(1e-3, 1e-1, log=True),
        "epochs": neps.Integer(10, 100)
    },
    root_directory="path/to/result_dir" # (3)!
)
  1. The objective function, targeted by NePS for minimization, by evaluation various configurations. It requires these configurations as input and should return either a dictionary or a sole loss value as the output.
  2. This defines the search space for the configurations from which the optimizer samples. It accepts either a dictionary with the configuration names as keys, a path to a YAML configuration file, or a configSpace.ConfigurationSpace object. For comprehensive information and examples, please refer to the detailed guide available here
  3. The directory path where the information about the optimization and its progress gets stored. This is also used to synchronize multiple calls to neps.run() for parallelization.

See the following for more:

Budget, how long to run?#

To define a budget, provide max_evaluations_total= to neps.run(), to specify the total number of evaluations to conduct before halting the optimization process, or max_cost_total= to specify a cost threshold for your own custom cost metric, such as time, energy, or monetary.

def run(learning_rate: float, epochs: int) -> float:
    start = time.time()

    # Your code here
    end = time.time()
    duration = end - start
    return {"objective_function_to_minimize": loss, "cost": duration}

neps.run(
    max_evaluations_total=10, # (1)!
    max_cost_total=1000, # (2)!
)
  1. Specifies the total number of evaluations to conduct before halting the optimization process.
  2. Prevents the initiation of new evaluations once this cost threshold is surpassed. This can be any kind of cost metric you like, such as time, energy, or monetary, as long as you can calculate it. This requires adding a cost value to the output of the evaluate_pipeline function, for example, return {'loss': loss, 'cost': cost}. For more details, please refer here

Getting some feedback, logging#

NePS will not print anything to the console. To view the progress of workers, you can enable logging through python's logging.basicConfig.

import logging

logging.basicConfig(level=logging.INFO)

neps.run(...)

Please refer to Python's logging documentation for more information on how to customize the logging output.

Continuing Runs#

To continue a run, all you need to do is provide the same root_directory= to neps.run() as before, with an increased max_evaluations_total= or max_cost_total=.

def run(learning_rate: float, epochs: int) -> float:
    start = time.time()

    # Your code here
    end = time.time()
    duration = end - start
    return {"objective_to_minimize": loss, "cost": duration}

neps.run(
    # Increase the total number of trials from 10 as set previously to 50
    max_evaluations_total=50,
)

If the run previously stopped due to reaching a budget and you specify the same budget, the worker will immediatly stop as it will remember the amount of budget it used previously.

Overwriting a Run#

To overwrite a run, simply provide the same root_directory= to neps.run() as before, with the overwrite_working_directory=True argument.

neps.run(
    ...,
    root_directory="path/to/previous_result_dir",
    overwrite_working_directory=True,
)

Warning

This will delete the folder specified by root_directory= and all its contents.

Getting the results#

The results of the optimization process are stored in the root_directory= provided to neps.run(). To obtain a summary of the optimization process, you can enable the post_run_summary=True argument in neps.run(), while will generate a summary csv after the run has finished.

The root directory after utilizing this argument will look like the following:

root_directory
├── configs
│   ├── config_1
│   │   ├── config.yaml     # The configuration
│   │   ├── report.yaml    # The results of this run, if any
│   │   └── metadata.json   # Metadata about this run, such as state and times
│   └── config_2
│       ├── config.yaml
│       └── metadata.json
├── summary_csv             # Only if post_run_summary=True
│  ├── config_data.csv
│  └── run_status.csv
├── optimizer_info.yaml     # The optimizer's configuration
└── optimizer_state.pkl     # The optimizer's state, shared between workers

neps.run(..., post_run_summary=True)

To capture the results of the optimization process, you can use tensorbaord logging with various utilities to integrate closer to NePS. For more information, please refer to the analyses page page.

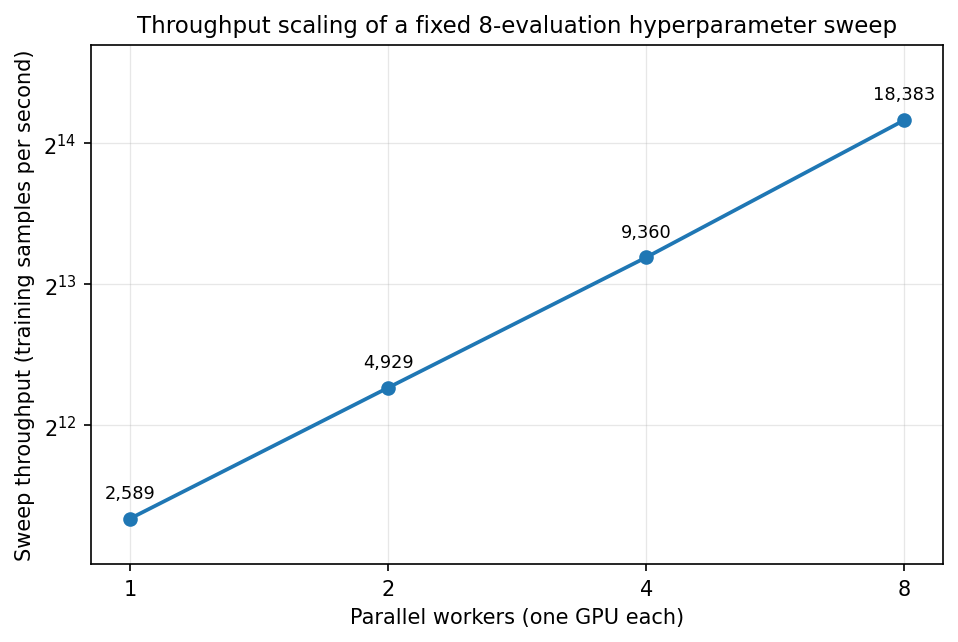

Parallelization#

NePS utilizes the file-system and locks as a means of communication for implementing parallelization and resuming runs. As a result, you can start multiple neps.run() from different processes however you like and they will synchronize, as long as they share the same root_directory=. Any new workers that come online will automatically pick up work and work together to until the budget is exhausted.

# worker.py
neps.run(
    evaluate_pipeline=...,
    pipeline_space=...,
    root_directory="some/path",
    max_evaluations_total=100,
    max_evaluations_per_run=10, # (1)!
    continue_until_max_evaluation_completed=True, # (2)!
    overwrite_working_directory=False, #!!!
)
  1. Limits the number of evaluations for this specific call of neps.run().
  2. Evaluations in-progress count towards max_evaluations_total, halting new ones when this limit is reached. Setting this to True enables continuous sampling of new evaluations until the total of completed ones meets max_evaluations_total, optimizing resource use in time-sensitive scenarios.

Warning

Ensure overwrite_working_directory=False to prevent newly spawned workers from deleting the shared directory!

# Start 3 workers
python worker.py &
python worker.py &
python worker.py &

YAML Configuration#

We support arguments to neps.run() that have been seriliazed into a YAML file. This means you can manage your configurations in a more human-readable format if you prefer.

For more on yaml usage, please visit the dedicated page on usage of YAML with NePS.

# We allow specifying the evaluate_pipeline as a module path and function name
evaluate_pipeline: path/to/evaluate_pipeline.py:eval_func_name

pipeline_space:
  batch_size: 64                # Constant
  optimizer: [adam, sgd, adamw] # Categorical
  alpha: [0.01, 1.0]            # Uniform Float
  n_layers: [1, 10]             # Uniform Integer
  learning_rate:                # Log scale Float with a prior
    lower: 1e-5
    upper: 1e-1
    log: true
    prior: 1e-3
    prior_confidence: high
  epochs:                       # Integer fidelity
    lower: 5
    upper: 20
    is_fidelity: true

root_directory: "neps_results"  # Output directory for results
max_evaluations_total: 100
optimizer:
  name: "bayesian_optimization"
  initial_design_size: 5
  cost_aware: true

with open("config.yaml", "r") as file:
    settings = yaml.safe_load(file)

neps.run(**settings)

Handling Errors#

Things go wrong during optimization runs and it's important to consider what to do in these cases. By default, NePS will halt the optimization process when an error but you can choose to ignore_errors=, providing a loss_value_on_error= and cost_value_on_error= to control what values should be reported to the optimization process.

def run(learning_rate: float, epochs: int) -> float:
    if whoops_my_gpu_died():
        raise RuntimeError("Oh no! GPU died!")

    ...
    return loss

neps.run(
    loss_value_on_error=100, # (1)!
    cost_value_on_error=10, # (2)!
    ignore_errors=True, # (3)!
)
  1. If an error occurs, the loss value for that configuration will be set to 100.
  2. If an error occurs, the cost value for that configuration will be set to 100.
  3. Continue the optimization process even if an error occurs, otherwise throwing an exception and halting the process.

Note

Any runs that error will still count towards the total max_evaluations_total or max_evaluations_per_run.

Re-running Failed Configurations#

Sometimes things go wrong but not due to the configuration itself. Sometimes you'd also like to change the state so that you re-evaluate that configuration.

If you need to go in there and change anything, the entire optimization state is editable on disk. You can follow these steps to modify the state of things.

root_directory
├── configs
│   ├── .trial_cache.pkl    # A cache of all trial information for optimizers
│   ├── config_1
│   │   ├── config.yaml     # The configuration
│   │   ├── report.yaml    # The results of this run, if any
│   │   ├── metadata.json   # Metadata about this run, such as state and times
│   └── config_2
│       ├── config.yaml
│       └── metadata.json
├── optimizer_info.yaml
└── optimizer_state.pkl     # The optimizer's state, shared between workers
  1. The first thing you should do is make sure no workers are running.
  2. Next, delete optimizer_state.pkl and configs/.trial_cache.pkl. This is cached information to share betwen the workers.

  3. Lastly, you can go in and modify any of the following files:

    • config.yaml - The configuration to be run. This was samled from your search space.
    • report.yaml - The results of the run. This is where you can change what was reported back.
    • metadata.json - Metadata about the run. Here you can change the "state" key to one of State to re-run the configuration, usually you'd want to set it to "pending" such that the next worker will pick it up and re-run it.
    • Once you've made your changes, you can start the workers again and they will pick up the new state re-creating the caches as necessary.

Selecting an Optimizer#

By default NePS intelligently selects the most appropriate optimizer based on your defined configurations in pipeline_space=, one of the arguments to neps.run().

The characteristics of your search space, as represented in the pipeline_space=, play a crucial role in determining which optimizer NePS will choose. This automatic selection process ensures that the optimizer aligns with the specific requirements and nuances of your search space, thereby optimizing the effectiveness of the hyperparameter and/or architecture optimization.

You can also manually select a specific or custom optimizer that better matches your specific needs. For more information about the available optimizers and how to customize your own, refer here.
