CARL Classic Control Environments

Classic Control is a problem suite included in OpenAI’s gym consisting of simply physics simulation tasks. Context features here are therefore also physics-based, e.g. friction, mass or gravity.

CARL Pendulum Environment

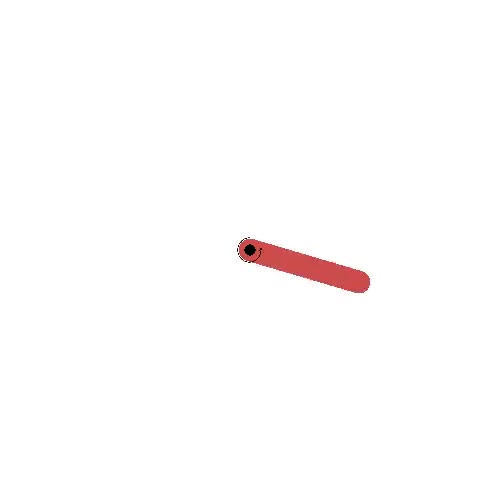

In Pendulum, the agent’s task is to swing up an inverted pendulum and balance it at the top from a random position. The action here is the direction and amount of force the agent wants to apply to the pendulum.

Defaults and Bounds

Context Feature	Default	Bounds
max_speed	8.0	(-inf, inf, <class ‘float’>)
dt	0.05	(0, inf, <class ‘float’>)
g	10.0	(0, inf, <class ‘float’>)
m	1.0	(1e-06, inf, <class ‘float’>)
l	1.0	(1e-06, inf, <class ‘float’>)

CARL CartPole Environment

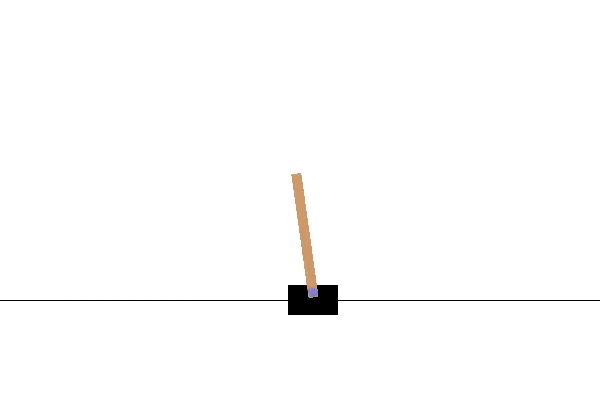

CartPole, similarly to Pendulum, asks the agent to balance a pole upright, though this time the agent doesn’t directly apply force to the pole but moves a cart on which the pole ist placed either to the left or the right.

Defaults and Bounds

Context Feature	Default	Bounds
gravity	9.8	(0.1, inf, <class ‘float’>)
masscart	1.0	(0.1, 10, <class ‘float’>)
masspole	0.1	(0.01, 1, <class ‘float’>)
pole_length	0.5	(0.05, 5, <class ‘float’>)
force_magnifier	10.0	(1, 100, <class ‘int’>)
update_interval	0.02	(0.002, 0.2, <class ‘float’>)

CARL Acrobot Environment

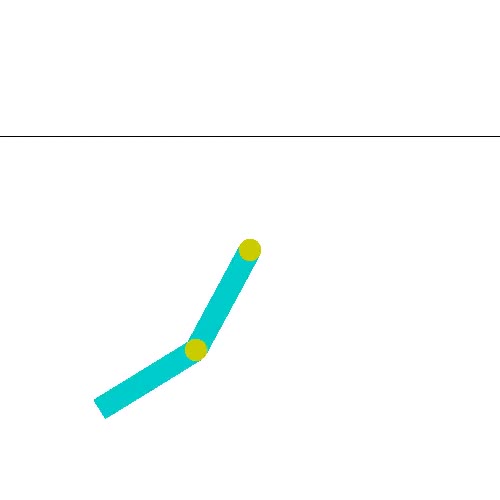

Acrobot is another swing-up task with the goal being swinging the end of the lower of two links up to a given height. The agent accomplishes this by actuating the joint connecting both links.

Defaults and Bounds

Context Feature	Default	Bounds
link_length_1	1.0	(0.1, 10, <class ‘float’>)
link_length_2	1.0	(0.1, 10, <class ‘float’>)
link_mass_1	1.0	(0.1, 10, <class ‘float’>)
link_mass_2	1.0	(0.1, 10, <class ‘float’>)
link_com_1	0.5	(0, 1, <class ‘float’>)
link_com_2	0.5	(0, 1, <class ‘float’>)
link_moi	1.0	(0.1, 10, <class ‘float’>)
max_velocity_1	12.566370614359172	(1.2566370614359172, 125.66370614359172, <class ‘float’>)
max_velocity_2	28.274333882308138	(2.827433388230814, 282.7433388230814, <class ‘float’>)
torque_noise_max	0.0	(-1.0, 1.0, <class ‘float’>)

CARL MountainCar Environment

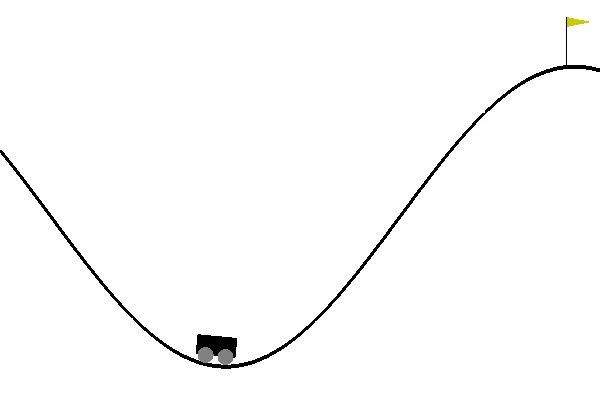

The MountainCar environment asks the agent to move a car up a steep slope. In order to succeed, the agent has to accelerate using the opposite slope. There are two versions of the environment, a discrete one with only “left” and “right” as actions, as well as a continuous one.

Defaults and bounds for the discrete MountainCar:

Defaults and Bounds

Context Feature	Default	Bounds
min_position	-1.2	(-inf, inf, <class ‘float’>)
max_position	0.6	(-inf, inf, <class ‘float’>)
max_speed	0.07	(0, inf, <class ‘float’>)
goal_position	0.5	(-inf, inf, <class ‘float’>)
goal_velocity	0.0	(-inf, inf, <class ‘float’>)
force	0.001	(-inf, inf, <class ‘float’>)
gravity	0.0025	(0, inf, <class ‘float’>)
start_position	-0.5	(-1.5, 0.5, <class ‘float’>)
start_position_std	0.1	(0.1, inf, <class ‘float’>)
start_velocity	0.0	(-inf, inf, <class ‘float’>)
start_velocity_std	0.0	(0.1, inf, <class ‘float’>)

And for the continuous case:

Defaults and Bounds

Context Feature	Default	Bounds
min_position	-1.2	(-inf, inf, <class ‘float’>)
max_position	0.6	(-inf, inf, <class ‘float’>)
max_speed	0.07	(0, inf, <class ‘float’>)
goal_position	0.45	(-inf, inf, <class ‘float’>)
goal_velocity	0.0	(-inf, inf, <class ‘float’>)
power	0.0015	(-inf, inf, <class ‘float’>)
min_position_start	-0.6	(-inf, inf, <class ‘float’>)
max_position_start	-0.4	(-inf, inf, <class ‘float’>)
min_velocity_start	0.0	(-inf, inf, <class ‘float’>)
max_velocity_start	0.0	(-inf, inf, <class ‘float’>)
